Leak at the brake

there is one....clean it up good.....should see the seal.... Sometimes hard to get out....I try to drill a little hole in both sides and get a couple screws in there and then pull on them to get it started....
should be 1/8 inch wide around the shaft....

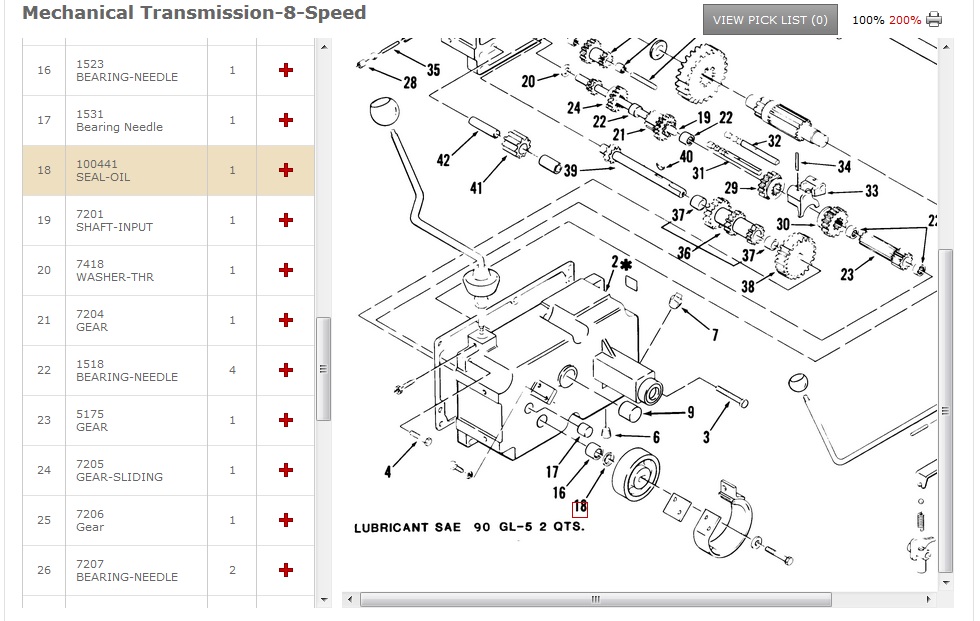

Hey Nappy. Here's a breakdown. Sorry so late, we were out cutting wood all day yesterday.


The Toro seals aren't very good, look for a seal #7410. NAPA has them and so do lots of other places.

Trouty56 wrote: there is one....clean it up good.....should see the seal.... Sometimes hard to get out....I try to drill a little hole in both sides and get a couple screws in there and then pull on them to get it started....
should be 1/8 inch wide around the shaft....

Oh ok ...its just so small...ugh.........thanks.....

Geno wrote: Hey Nappy. Here's a breakdown. Sorry so late, we were out cutting wood all day yesterday.


The Toro seals aren't very good, look for a seal #7410. NAPA has them and so do lots of other places.

Ok thanks....I got a breakdown and after looking at the tranny I couldn't see a seal...but now I know its small small...........:smile2

nappypappy wrote:

Geno wrote: Hey Nappy. Here's a breakdown. Sorry so late, we were out cutting wood all day yesterday.


The Toro seals aren't very good, look for a seal #7410. NAPA has them and so do lots of other places.

Ok thanks....I got a breakdown and after looking at the tranny I couldn't see a seal...but now I know its small small...........:smile2

A little update on the leak........got the seal at Napa put it in and It was leaking some there but the axel also is leaking some...
So who has a parts number at Napa for the axel seal.....at least it looked like there was one......me learning as I go....:smile2

Others can confirm.....but if you go to NAPA....NOS11050....8 speed right???

Be sure you remove burrs from the axle before slipping the seal on. Everybody has a method....mine is to remove burrs with some emory cloth and degrease the axle...I start at the tranny end run one layer of masking tape overlapping just a little bit each round....like a barber pole.....then oil the tape up and put a little grease on the seal and slip it over the tape.....seat it with an appropriate length of PVC pipe....dunno the size pipe...I know it just fits right....sorry
Once you oil the tape ya better move because the tape will not hold well very long after the oil soaks in.....

yeah its a 8 speed..........and thanks for the numbers...I will give Napa a visit later..:smile2

Well went to Napa and got the seal......getting the wheel hub off was not fun but got it off and seal installed....only time will tell if its still leaking anywhere else ....so thanks for the part numbers.....:smile2

That was quick Nappy!!!!

Nappy don't mess around does he.
