10 Sep 2015 17:19 #8264 by Geno
We are looking into Indak switch pigtails. I have found the factory blank connector, and the factory terminals. We may make them here or I am in contact with a manufacturer that will build them to my spec as a complete pigtail assy.


Does anyone know where the connector, inserts or pigtail can be bought right now? Just trying to cover the cost basis on this project and make sure I'm in line. :) The only pigtail I can find is from Stens at 13.00 - 15.00 without shipping, shipping is averaging from 12.00-15.00 on top of that. Now you know why we are looking into this. :whew


The specs I sent to the manufacturer for the quote are -

The connector - part #
The terminals - part #
Lead wires - 5
Wire Gauge - 16
Length - 12"

Wire color and placement can be specified later. The newer ones are mostly black wires, the blackhoods also have a scheme, but I thought of using the pre blackhood scheme, 2-orange, 1-red, 1-green, 1-black.

Would appreciate any help from you guys on this. :thanks

Welcome to the Stables!

Please Log in to join the conversation.

More
11 Sep 2015 07:53 #8272 by nappypappy
wow on the shipping costs.....:smile2

1985 416-8
520-H
You can lead a horse to water but you can't make him drink.
I can't see the forest for the trees.

Please Log in to join the conversation.

  • Geno
  • Topic Author
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
11 Sep 2015 08:07 #8273 by Geno
Seems like shipping is the big gotcha these days. :doh

Jack's Small Engines has the connector for 3.90 with 7.95 shipping which makes $11.85 just for the plastic connector, no terminals or wire either.

Welcome to the Stables!

Please Log in to join the conversation.

More
11 Sep 2015 08:15 #8274 by nappypappy

Geno wrote: Seems like shipping is the big gotcha these days. :doh

Jack's Small Engines has the connector for 3.90 with 7.95 shipping which makes $11.85 just for the plastic connector, no terminals or wire either.

Yeah crazy shipping prices....wouldn't just regular mail be cheaper or is that what they use?
:smile2

1985 416-8
520-H
You can lead a horse to water but you can't make him drink.
I can't see the forest for the trees.

Please Log in to join the conversation.

  • Geno
  • Topic Author
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
18 Sep 2015 16:22 - 18 Sep 2015 16:37 #8375 by Geno

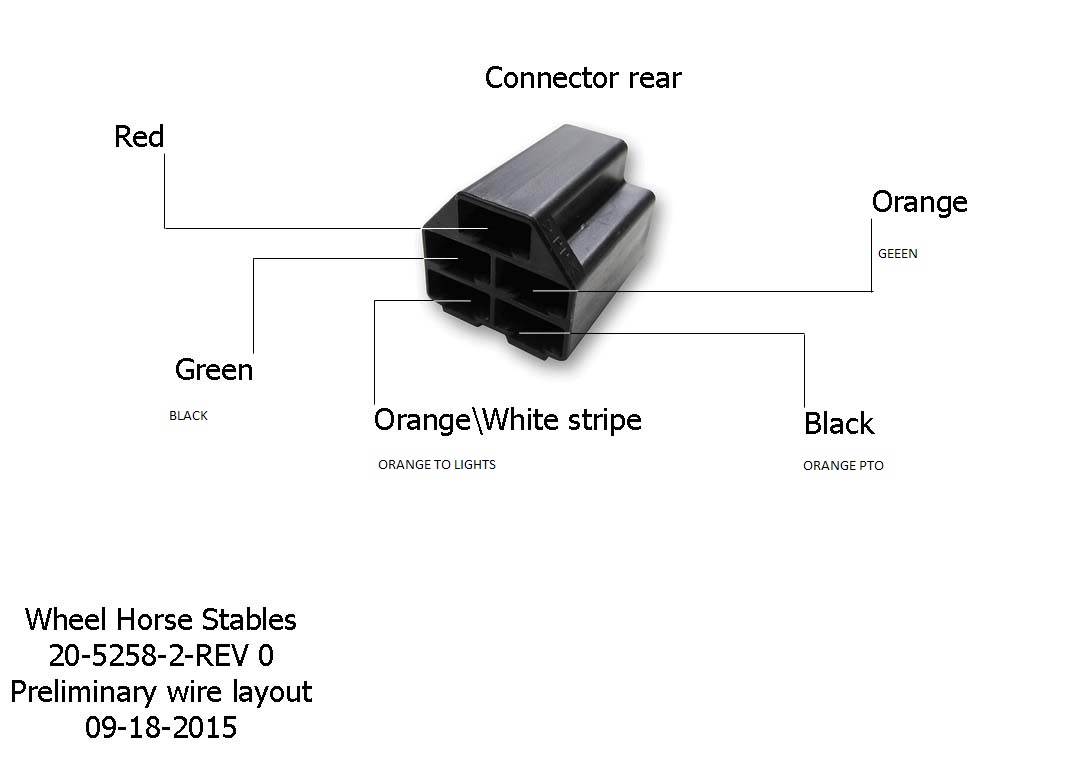

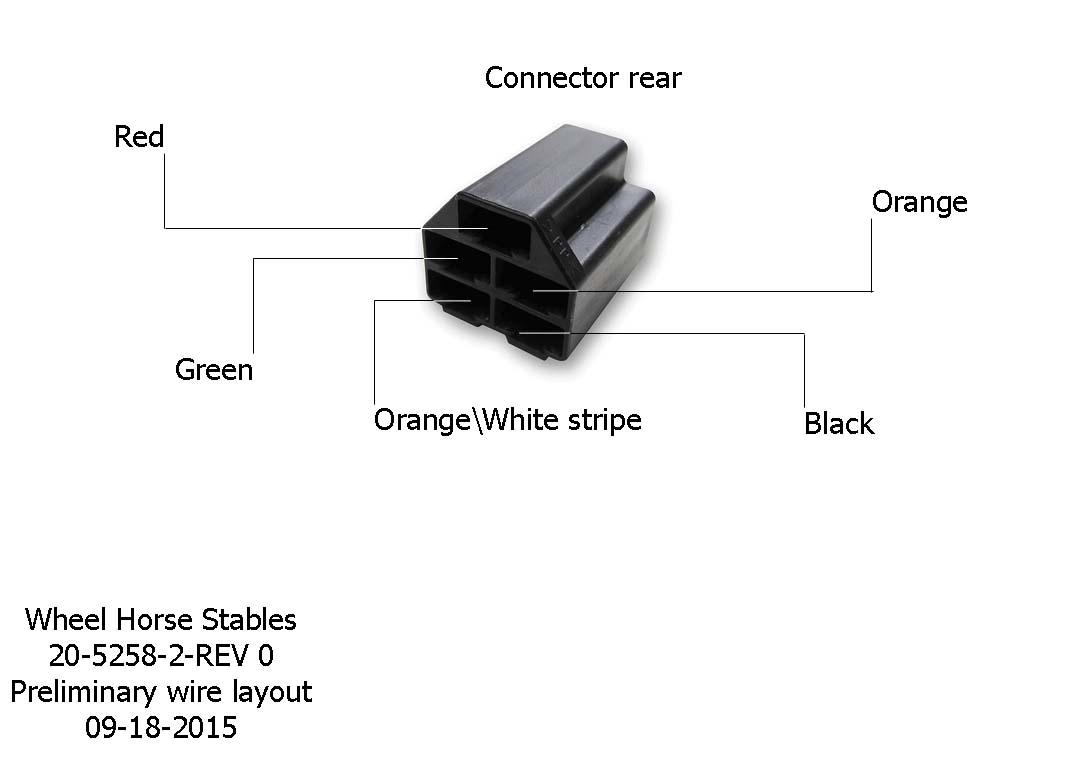

We have a quote and quantities we are satisfied with and are proceeding with a sample. Can you guys that have any pre black hood Indak switch tractors please double check me on this wiring pigtail wire color pic below?

The pic should be the pre black hood wiring scheme, only thing being changed is the light wire will be orange with a white stripe instead of just orange. I will be emailing it to a few of you guys also. :)




Welcome to the Stables!
Attachments:
Last edit: 18 Sep 2015 16:37 by Geno.

Please Log in to join the conversation.

More
19 Sep 2015 11:44 - 19 Sep 2015 11:46 #8385 by M Bailey

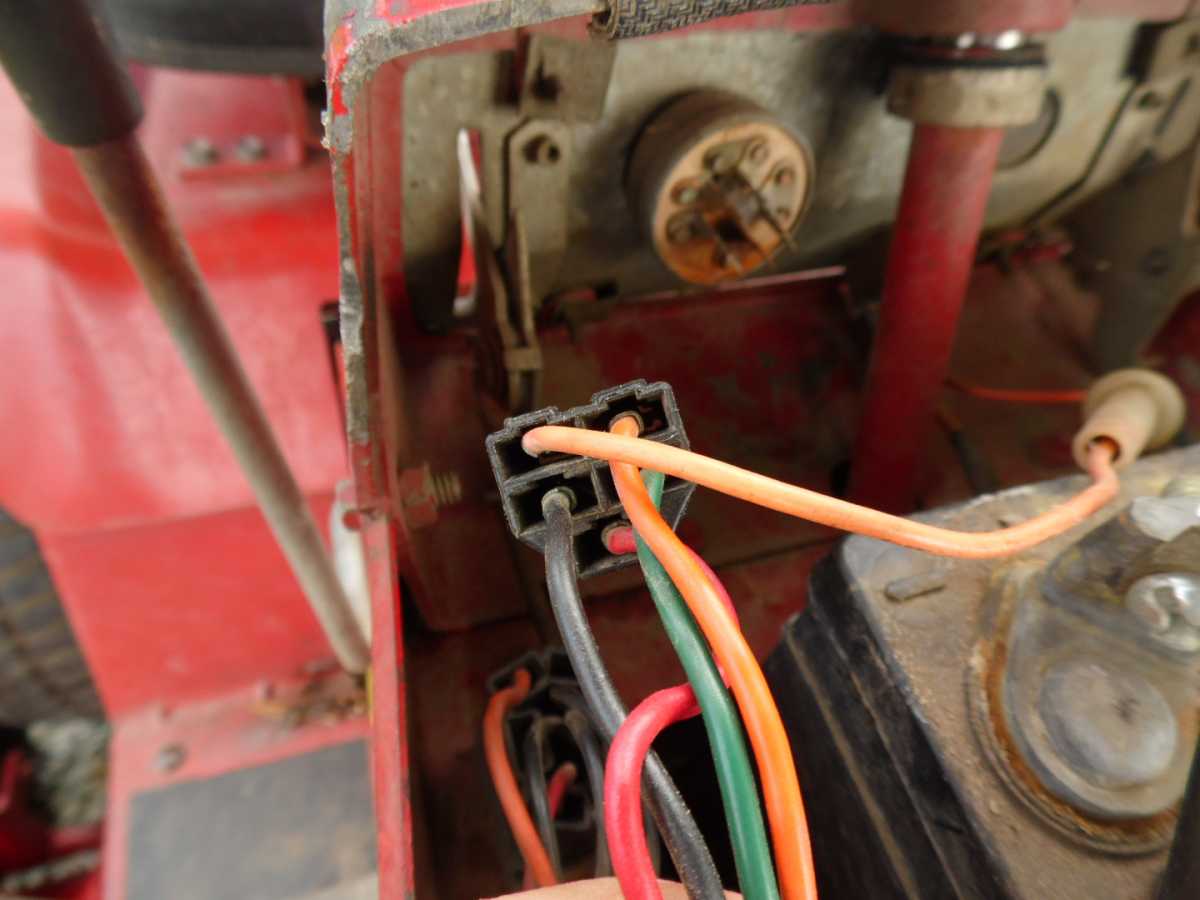

Geno here's the wiring on my C-161 Auto from the front of the connector/female side
