26 Nov 2020 10:46 #16498 by Geno
Wheel Horse 4937 Spacer was created by Geno
Working on the Wheel Horse 4937 Spacer. I need to ship out a few of these next week so they will be in the store shortly. I have something that works nicely for this and is the same OD and a little smaller ID which is good considering the original was a little too loose around the 3/8" bolt.

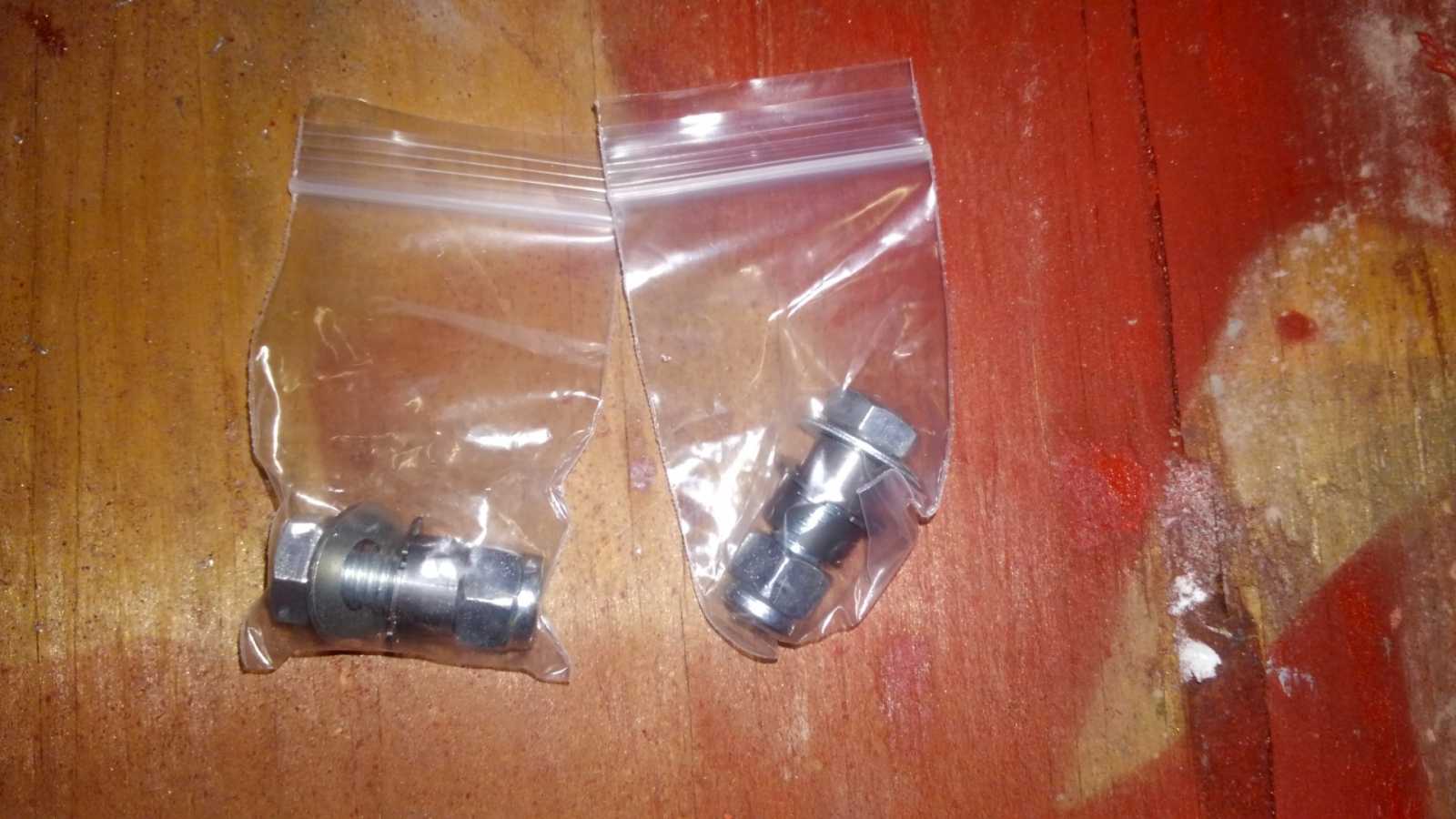

It will prob be sold separately for other uses and also as a kit with the bushing, bolt, and lock nut for the seat flip setups. The parts breakdown pics are below. :thumb1

Welcome to the Stables!
Attachments:

Please Log in to join the conversation.

  • Geno
  • Topic Author
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
26 Nov 2020 10:51 - 26 Nov 2020 10:54 #16499 by Geno
Replied by Geno on topic Wheel Horse 4937 Spacer
Here is the making of it. Very little cleanup cutting them on the lathe with a parting tool, and it's easy to get the width right at close to .3000" give or take a few thousandths like you can see on the DRO. :smile2

They actually thread on the 3/8" bolt lightly because of the seam in the pipe but can easily be done by hand. I'm not sure if I'll leave them that way or run a boring bar in them while they're on the lathe first to get rid of that.

Welcome to the Stables!
Attachments:
Last edit: 26 Nov 2020 10:54 by Geno.

Please Log in to join the conversation.

  • Geno
  • Topic Author
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
26 Nov 2020 10:52 #16500 by Geno
Replied by Geno on topic Wheel Horse 4937 Spacer
Comparison to NOS part.

Welcome to the Stables!
The following user(s) said Thank You: Rusty Tinsnips

Please Log in to join the conversation.

  • Geno
  • Topic Author
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
04 Dec 2020 16:35 #16515 by Geno
Replied by Geno on topic Wheel Horse 4937 Spacer
Made a few of these today and have a system down. The lip is getting cleaned inside with a boring bar, the tooling was ground to cut the new piece a few thousandths quicker than the piece in the chuck, and the cutting is getting done at a higher speed. Now there is no cleanup and they look really nice when done.

They will be in the store next week along with some other things. :thumb1

Welcome to the Stables!
Attachments:

Please Log in to join the conversation.

More
05 Dec 2020 11:18 #16516 by GT 14
Replied by GT 14 on topic Wheel Horse 4937 Spacer
And we owe it all to Jacques de Vaucanson inventor of the first metal lathe

1969 GT-18
1978 C-101
1983 C-225
Attachments:
The following user(s) said Thank You: Geno

Please Log in to join the conversation.

  • Geno
  • Topic Author
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
07 Dec 2020 11:57 - 07 Dec 2020 11:57 #16521 by Geno
Replied by Geno on topic Wheel Horse 4937 Spacer
They are now in the store. :thumb1

They are here - WHS 4937R Spacer

Welcome to the Stables!
Last edit: 07 Dec 2020 11:57 by Geno.
The following user(s) said Thank You: GT 14

Please Log in to join the conversation.

More
22 Dec 2020 21:49 #16563 by Rusty Tinsnips

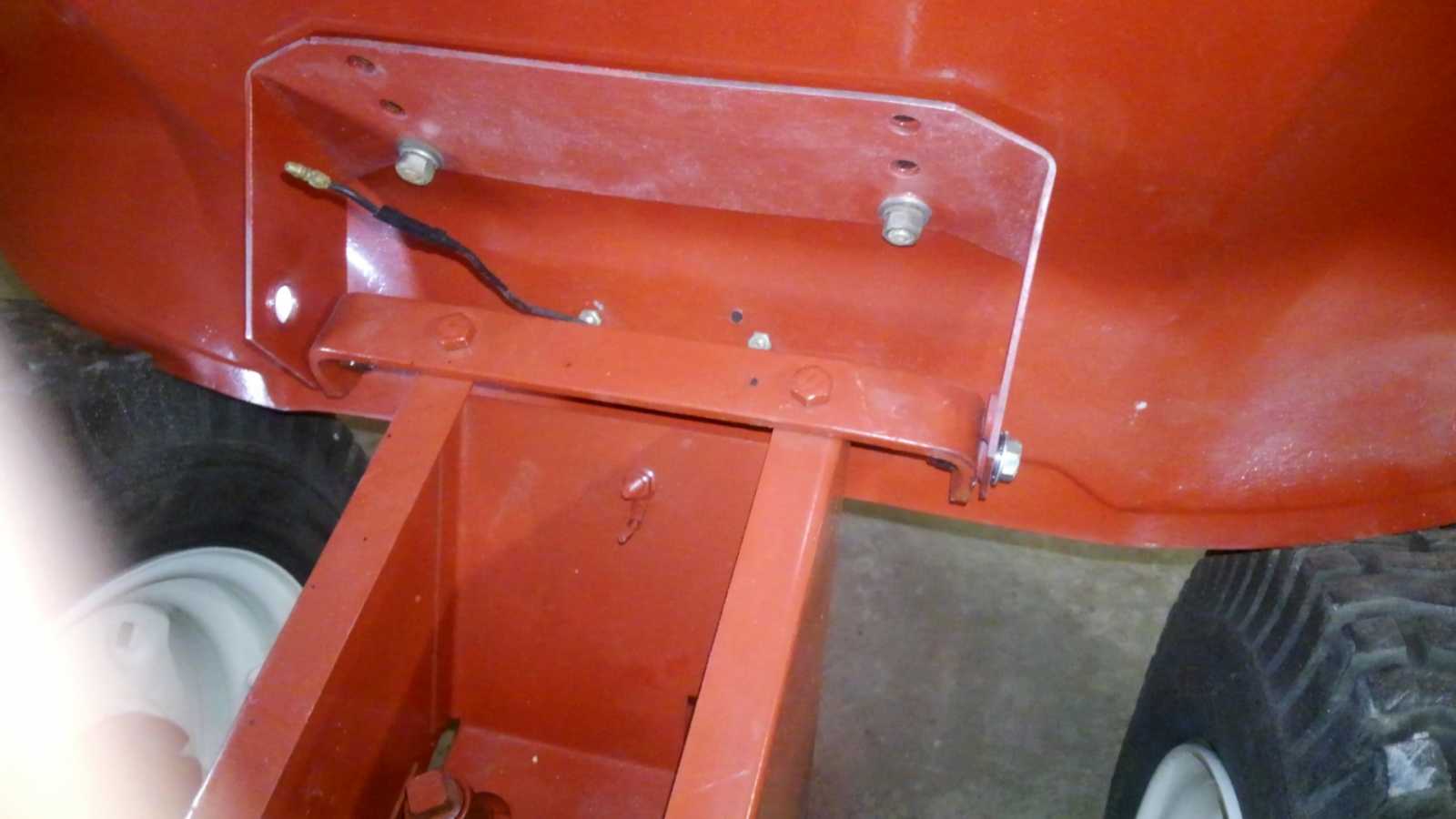

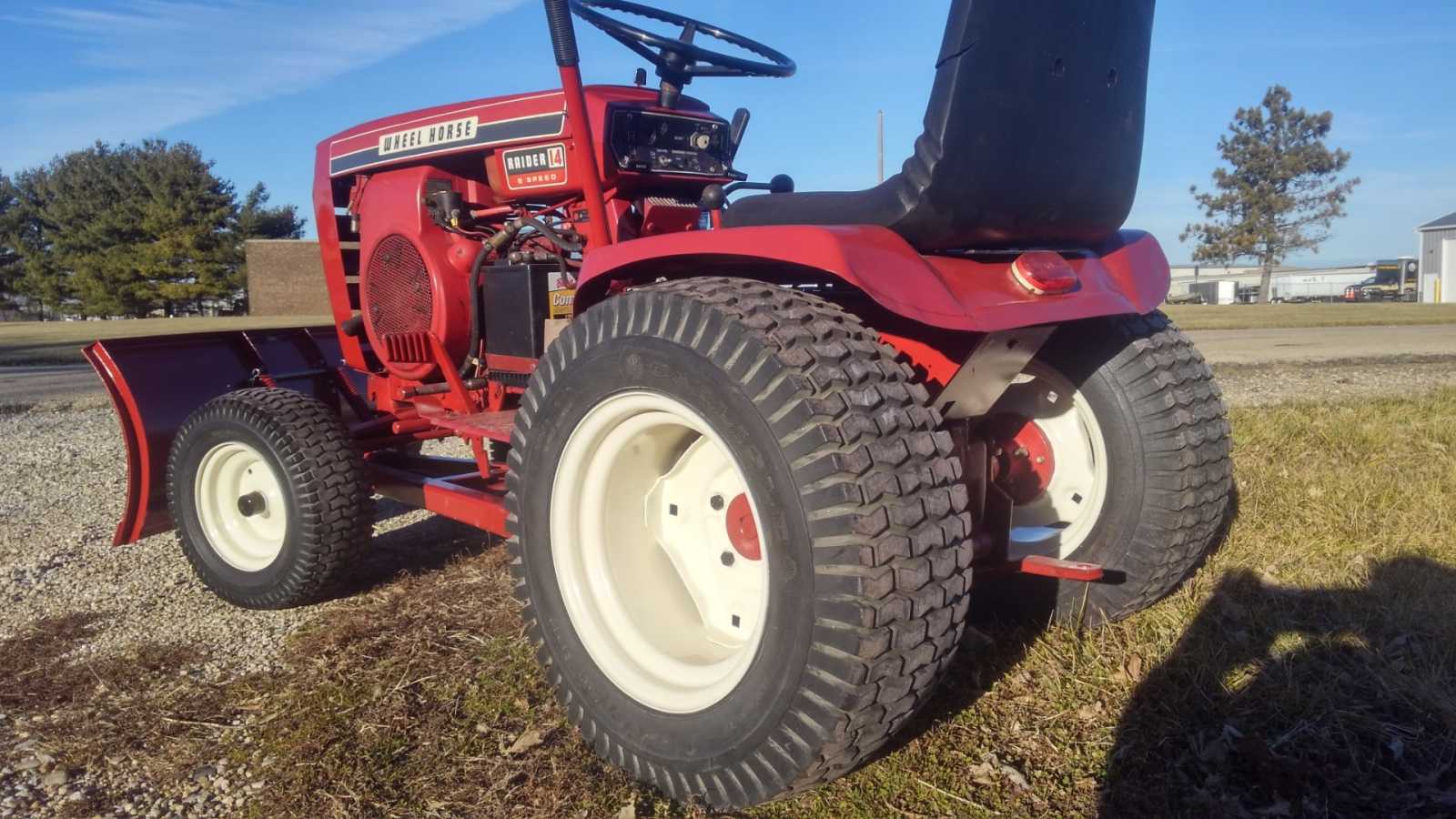

These came today and I got then installed, they fit perfect. Seat works better than new!
Thanks Gene for making my horse well again. You are awesome!
The following user(s) said Thank You: Geno

Please Log in to join the conversation.

  • Geno
  • Topic Author
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
23 Dec 2020 08:33 #16564 by Geno
Replied by Geno on topic Wheel Horse 4937 Spacer
Thanks Mike and glad you got her fixed up. You did a really nice job on the restore, nice work. :goodjob

Welcome to the Stables!

Please Log in to join the conversation.
