857 tranny may be toast

More
01 Jul 2015 23:11 #6434 by Bobster
Well I got my motor running real well now. My 3speed tranny seems to have some real problems.....

Cant get the shifter to move from side to side. Only voes front to back,
The input pully turns but is rougn.

Should the brake hub turn with the rear axles?

Does anyone have a tranny that I could just switch with?

Please Log in to join the conversation.

More
02 Jul 2015 04:56 #6435 by Trouty56
Replied by Trouty56 on topic 857 tranny may be toast
They aren't to bad to take apart.....There are some how to's out there and seals/bearing are all available. The brake shaft does turn with the axle....
I did one about 4 years ago.....trickiest part is not losing the little balls and spring in the shifter....and then replacing them....there is a trick to it.


Bob T
Adams County Pennsyltucky


"One, that's easy to remember. It's the first number in the alphabet...." - Barney Fife

Please Log in to join the conversation.

More
28 Jul 2015 19:42 #7215 by Bobster
Replied by Bobster on topic 857 tranny may be toast

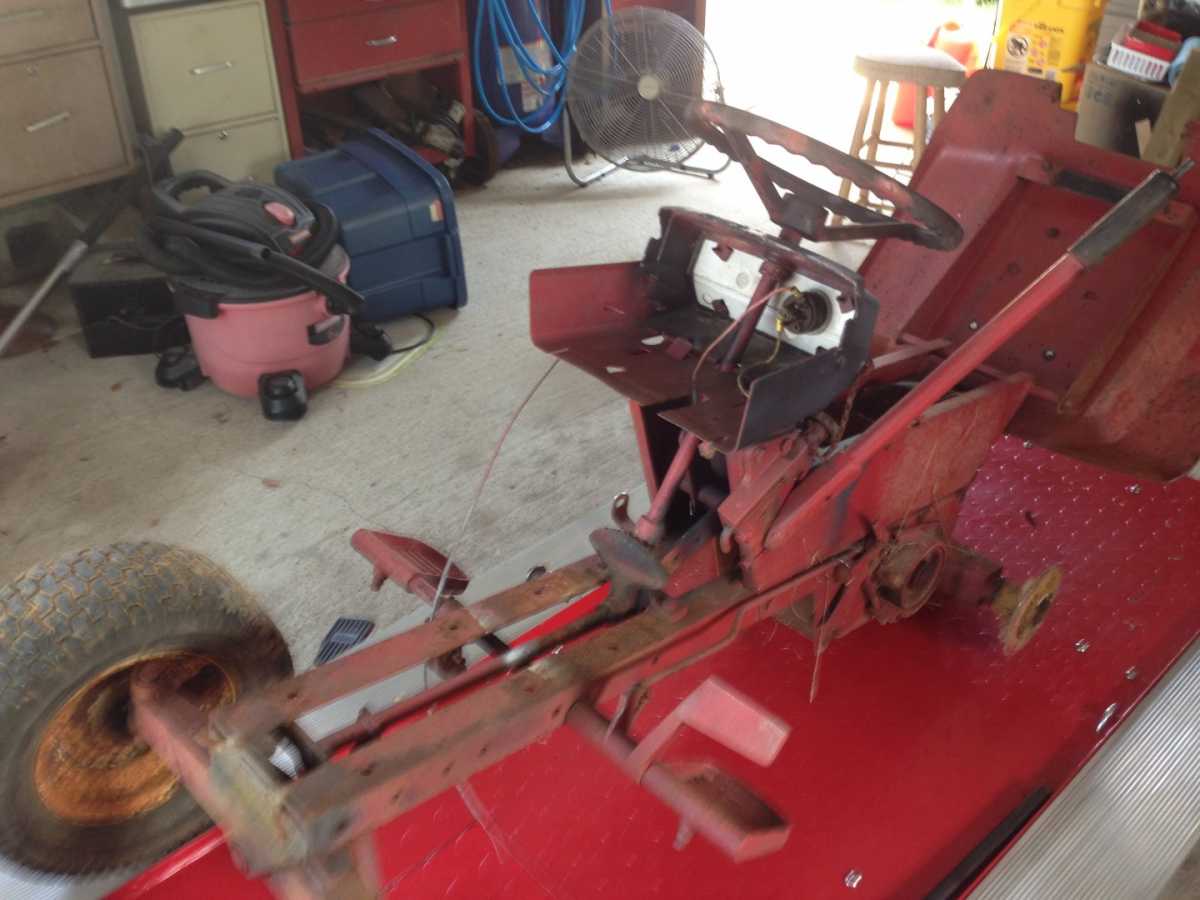

I found a tranny donor today. Nice guy even delivered it to my garage and put it on the lift for me.
I have already got it off the frame and cleaned up some

Attachments:

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
28 Jul 2015 19:57 #7217 by Geno
Replied by Geno on topic 857 tranny may be toast
Awesome Bob, that's some great news! :woo

Welcome to the Stables!

Please Log in to join the conversation.

More
28 Jul 2015 21:37 - 28 Jul 2015 21:37 #7225 by jm46322
Replied by jm46322 on topic 857 tranny may be toast
can i call first dibs on the steering wheel and all the lift hardware???? :dance2
sweet find on the donor, now after the project is done you can always open up the old trans
and see what makes it go round and round

John in Highland Indiana
self appointed chief mechanic at
WOODWARD FARMS
Last edit: 28 Jul 2015 21:37 by jm46322.

Please Log in to join the conversation.

More
29 Jul 2015 05:34 #7228 by GT 14
Replied by GT 14 on topic 857 tranny may be toast
Great, hope that one is in better shape.:thumb1

1969 GT-18
1978 C-101
1983 C-225

Please Log in to join the conversation.

More
30 Jul 2015 04:39 #7269 by Trouty56
Replied by Trouty56 on topic 857 tranny may be toast

jm46322 wrote: can i call first dibs on the steering wheel and all the lift hardware???? :dance2
sweet find on the donor, now after the project is done you can always open up the old trans
and see what makes it go round and round

I like this post!!!


Bob T
Adams County Pennsyltucky


"One, that's easy to remember. It's the first number in the alphabet...." - Barney Fife

Please Log in to join the conversation.

More
03 Aug 2015 19:53 #7462 by Bobster
Replied by Bobster on topic 857 tranny may be toast
I am about ready to install my new to me tranny in my 857. Here's my question.....

The bolt in the top of the tranny that holds the shifter in place has no head of it. There is a locking nut on it and it was loose and screwed way out. How tight should I screw it in before locking it in? Should it have a bolt head on it? thanks for help, Bobster

Please Log in to join the conversation.

More
03 Aug 2015 20:38 #7463 by jm46322
Replied by jm46322 on topic 857 tranny may be toast
1st there should be no head, the set up you are seeing is a: hex head set screw (dog-headed) & jam nut.
the screw is not bottomed out it should be loose with the jam nut locking it in place.
the gear shift has a ball welded to where it rests in the trans, in that ball a drilled hole accepts the dog-headed point of the Allen screw.
this is what keeps the shifter from being able to be pulled out,(up) the ball is what it floats on that allows the gears to to shifted.
the unthreaded part of the screw is the only part of the screw that should come in contact with the ball.
its was more of a feel thing when i did mine them anything.
i looked in my few manuals could not find the exact wheel horse procedure for this. someone else may have it

John in Highland Indiana
self appointed chief mechanic at
WOODWARD FARMS

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
03 Aug 2015 21:29 #7466 by Geno
Replied by Geno on topic 857 tranny may be toast
Nice John. :goodpost

The Allen wrench should be 1/8" if I remember right. :)
