Show us your stacks!

nappypappy wrote:

motor12 wrote: My 854 with stack and a shot of the support bracket.

Very nice and is that a u clamp?
Also I like the way that fuel line is run.... :goodjob

Nappypappy, I used a piece of aluminum angle and a u-bolt for the lower clamp that is attached to the bracket.

Nice Tractors.....Nice stacks.....

nappypappy wrote:

M Bailey wrote: Here's a couple,

416-8 with an 8N PN# FD1110

C-101 with a Kohler PN # 237550S

The 416-8 stack....what is that part number for or where?
Toro number?

Pappy that is the Ford New Holland part number for the muffler. It has a 1.5" ID inlet and 1.5" OD outlet, it's 17" long. Just do a search for FD1110 and you'll find lots of sources for 'em. This one came from ebay. A 1 1/2" OD sweeping 90 bolts it to the manifold.

My biggest problem is attaching to a 1 1/4 in pipe.....that is the OD of the pipe used on the engines.....

I have bought the AC1 mufflers from TSC for about 20 bucks (NAPA sells them also under their own part #) with a 1 3/8 inlet and a 1 1/2 outlet..... Where I attached the muffler to the pipe is always my sore spot....looks like heck.....

Here it is on the Rural King site with dimensions....

www.ruralking.com/stanley-muffler-allis-...8l6f9hRRLxoC7iPw_wcB

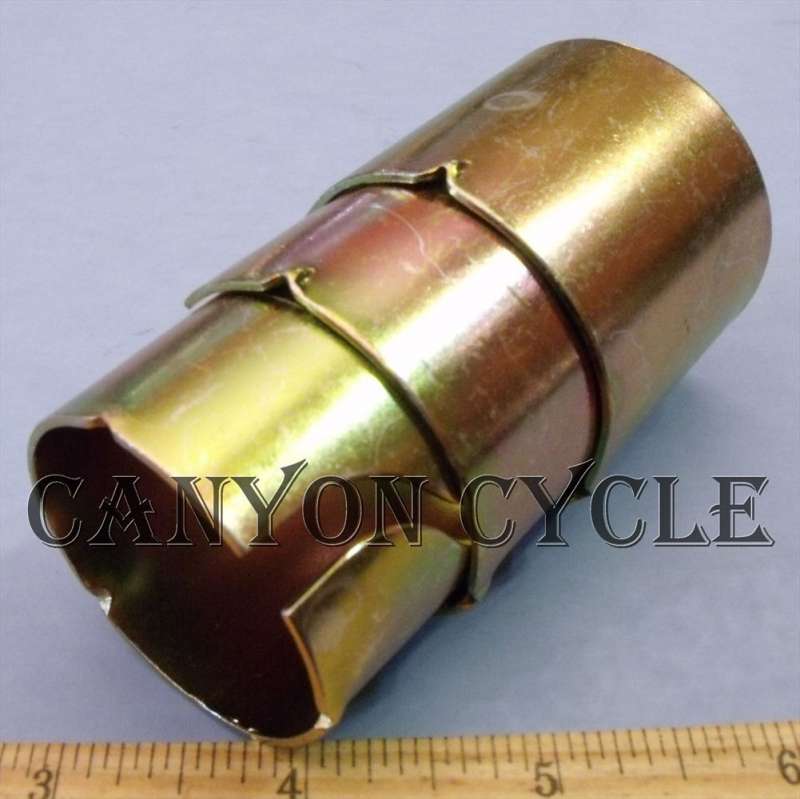

These exhaust reducer bushings are life savers and save a lot of :angry2



LINK

M Bailey wrote: These exhaust reducer bushings are life savers and save a lot of :angry2

LINK

Nice.....new products I never knew existed.....thanks major.....
