22 May 2015 15:54 - 22 May 2015 15:56 #4788 by M Bailey
These H60 carb adapters can be a real pain when trying to remove the carburetor by itself. Why they designed these this way is still a mystery to me! The 1/4-28 bolts are free to turn when removing the carb so here's the fix.
Drill and pin the bolts as shown.

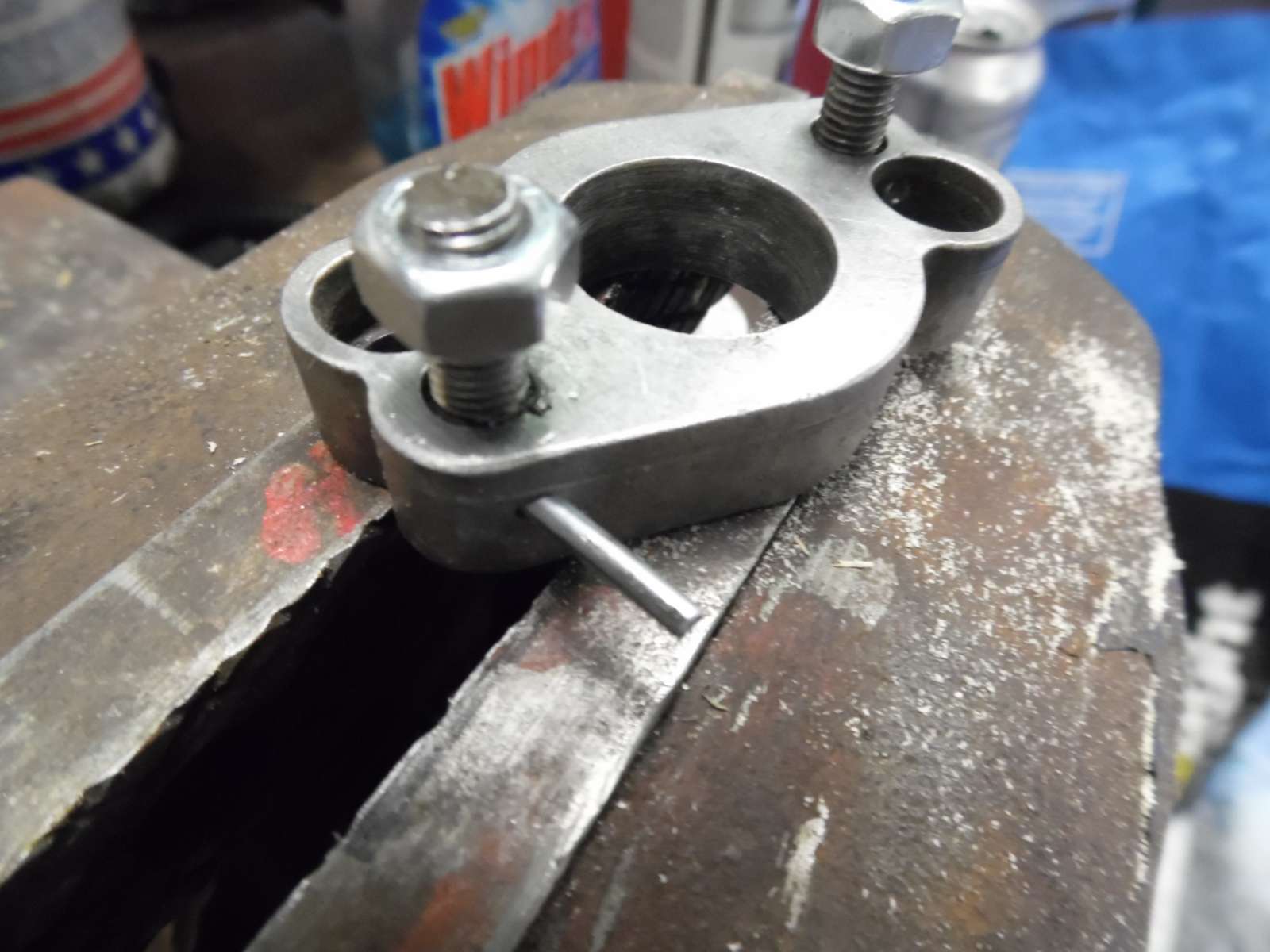

Cut off the excess roll pin

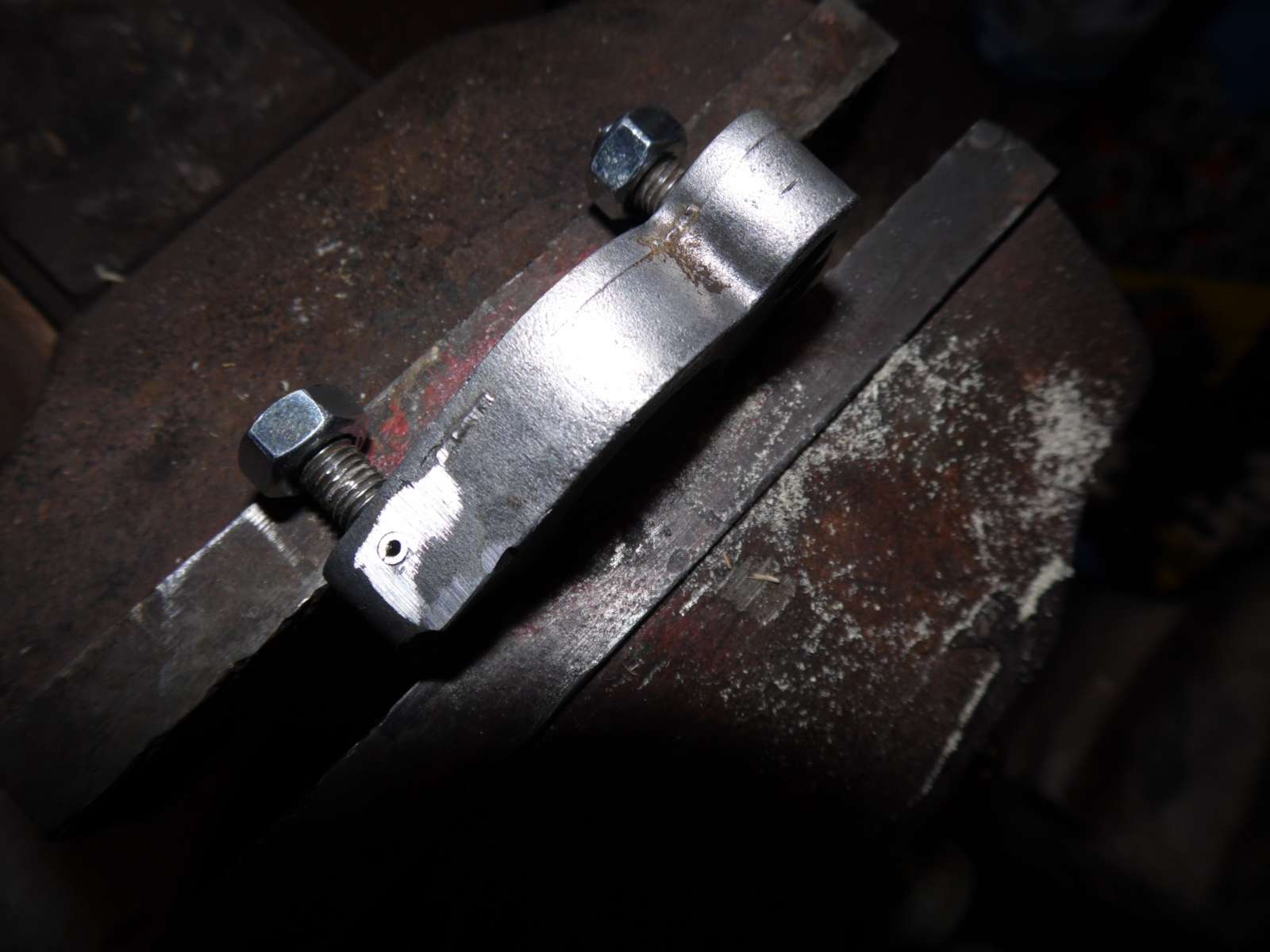

Grind level the roll pins and now we have 2 fixed studs on the carb adapter! :woo

Major


"I refuse to join any club that would have me as a member." Groucho Marx
Attachments:
Last edit: 22 May 2015 15:56 by M Bailey.
The following user(s) said Thank You: Geno, GT 14

Please Log in to join the conversation.

More
22 May 2015 16:34 #4791 by nappypappy
Replied by nappypappy on topic Techy Carb Adapter Mod
nice work....I learn something almost everyday.... :goodjob

1985 416-8
520-H
You can lead a horse to water but you can't make him drink.
I can't see the forest for the trees.
The following user(s) said Thank You: M Bailey

Please Log in to join the conversation.

More
22 May 2015 16:45 #4792 by M Bailey
Replied by M Bailey on topic Techy Carb Adapter Mod
Thanks Pappy, you would have thought they would have molded the studs into the adapter but sadly that was not the case.

Major


"I refuse to join any club that would have me as a member." Groucho Marx

Please Log in to join the conversation.

More
22 May 2015 16:59 #4793 by GT 14
Replied by GT 14 on topic Techy Carb Adapter Mod
Nice job, I like solutions when issues like this arise.

1969 GT-18
1978 C-101
1983 C-225
The following user(s) said Thank You: M Bailey

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
22 May 2015 18:14 #4795 by Geno
Replied by Geno on topic Techy Carb Adapter Mod
Nice Major. The best fix is one that can still be taken apart. :goodjob

Welcome to the Stables!
The following user(s) said Thank You: M Bailey

Please Log in to join the conversation.

More
22 May 2015 18:23 #4796 by Trouty56
Replied by Trouty56 on topic Techy Carb Adapter Mod
Simple and it works.....Like!!!!


Bob T
Adams County Pennsyltucky


"One, that's easy to remember. It's the first number in the alphabet...." - Barney Fife
The following user(s) said Thank You: M Bailey

Please Log in to join the conversation.
