Poormans Hoist

More
16 Sep 2015 12:46 #8334 by GT 14
Poormans Hoist was created by GT 14

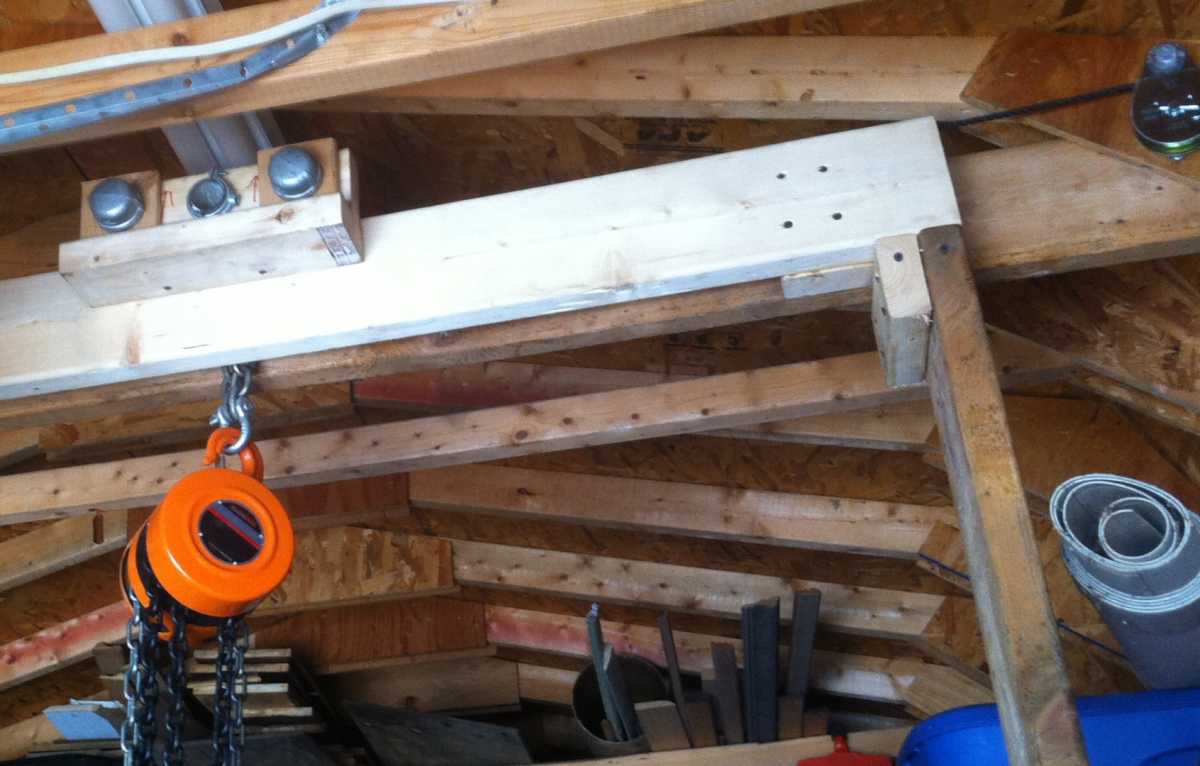

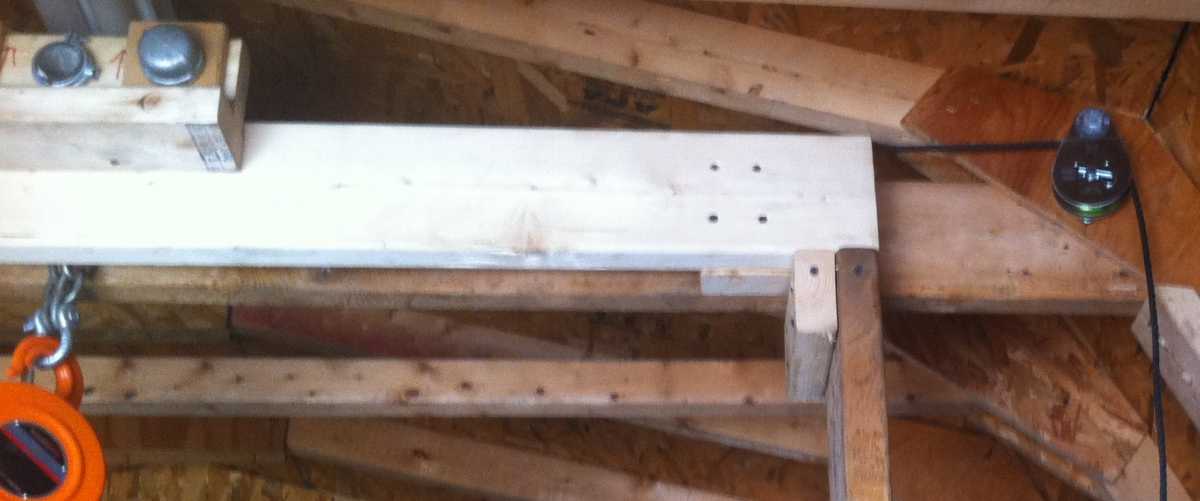

So I wanted an overhead hoist for the shed. After pondering for a few days I had a brain fart. Had some 2x6 laying around so slapped some up and then made a trolley with 1 1/4" pipe. Got a 1T chain hoist and here she is. Using a rope and pulley to position for now.

1969 GT-18
1978 C-101
1983 C-225
Attachments:
The following user(s) said Thank You: M Bailey, GlenPettit

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
16 Sep 2015 15:05 #8335 by Geno
Replied by Geno on topic Poormans Hoist
Nice work GT, look like you got her braced up really good. :goodjob

Welcome to the Stables!

Please Log in to join the conversation.

More
16 Sep 2015 16:57 #8336 by Kurt-NEPA
Replied by Kurt-NEPA on topic Poormans Hoist
I like it GT, I might steal your idea one of these days.

Kurt

1988 520H
1995 520H
1998 520xi
2000 522xi
1950 Ford 8N
1955 Ford 660
Single Stage Blower
2-Two Stage Blowers

Please Log in to join the conversation.

More
16 Sep 2015 17:50 #8337 by GT 14
Replied by GT 14 on topic Poormans Hoist
I lifted the front of the c-225 and didn't hear any complaint from the structure. Will try the whole tractor next.

1969 GT-18
1978 C-101
1983 C-225

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
16 Sep 2015 18:10 #8338 by Geno
Replied by Geno on topic Poormans Hoist
We will definitely need pics of that. :pics1

Welcome to the Stables!

Please Log in to join the conversation.

More
17 Sep 2015 05:41 #8339 by Trouty56
Replied by Trouty56 on topic Poormans Hoist
Cool....can you move the hoist while a load is lifted...


Bob T
Adams County Pennsyltucky


"One, that's easy to remember. It's the first number in the alphabet...." - Barney Fife

Please Log in to join the conversation.

More
17 Sep 2015 06:41 #8341 by GT 14
Replied by GT 14 on topic Poormans Hoist

Trouty56 wrote: Cool....can you move the hoist while a load is lifted...

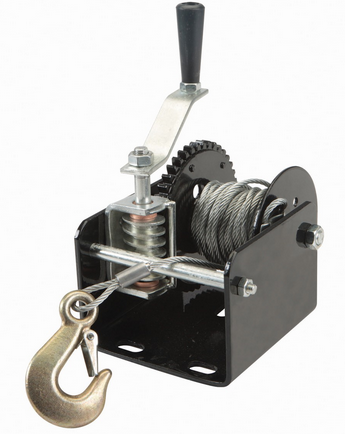

That will be phase 2 Bob, I was thinking of installing hand winches on each side. It rolls easily unloaded.

1969 GT-18
1978 C-101
1983 C-225
Attachments:
The following user(s) said Thank You: AJ WH Ranger
